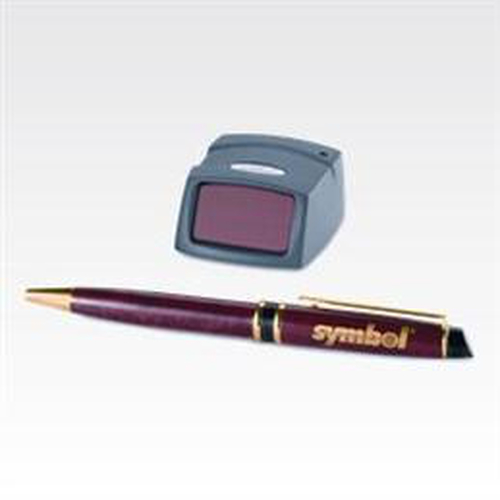

icon miniScan MS 954 - barcode scanner - desktop device - 104 scans/sec - decoded - RS-232 group bar code reader manufacturers icon technologies manufacturer item no. MS-954-I000R EAN/UPC Product Description: MiniScan MS 954 icon - barcode scanner type barcode scanner - desktop device - fixed - rs-232, serial - decoded - dimensions ( width x depth x height) 4.9 cm x 5.8 cm x 2.5 cm weight 47 g scan element type Visible laser diode scan speed 104 scans/sec Connection Technology Wired
Details: General type barcode scanner - desktop device - fixed width 4.9 cm depth 5.8 cm height 2.5 cm weight 47 g Barcode interfaces type RS-232, serial scan element type Visible laser diode wavelength of light source 650 nm scan mode Fixed projection scan speed 104 scans/sec. Max use distance 101.6 cm skew (degrees) 50 pitch (degrees) 65 print contrast signal (PCS) 25% decryption capability EAN/JAN, code 93, code 39, UCC/EAN-128, RSS code,
Zebra's “MS954, 1D, FZ, RS232, anthracite insertion scanner, 1D, fuzzyScan, 104 scans/sec, RS...” from Zebra from the barcode scanners category is gray. The product has a weight of 47.3g. The item has the following dimensions: 490 x 586 x 259 mm (W x D x H). The item has the certifications: EN 55024, EN 61000-3-2, ICES 003 Class B, EN 61000-3-3, FCC Part 15 Class B, EN 301 489-17, EN 55022, EN 301 489-1, IEC 60601-1-2, RoHS Directive 2002/95/EEC.
Zebra Ernst-Dietrich-Platz 2, 40882 Ratingen, DE contact.emea@zebra.com
Technical specifications
Language
Weight & dimensions
Weight
47.3 g
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 60 °C
Performance
Certification
EN 55024, EN 61000-3-2, ICES 003 Class B, EN 61000-3-3, FCC Part 15 Class B, EN 301 489-17, EN 55022, EN 301 489-1, IEC 60601-1-2, RoHS Directive 2002/95/EEC
LED indicators
Power
Product colour
Grey
Other features
Safety
EN 60950-1, C22.2 No. 60950-1, UL 60950-1, IEC 60950-1, IEC 60825-1, 21CFR1040.10, EN 60825-1
