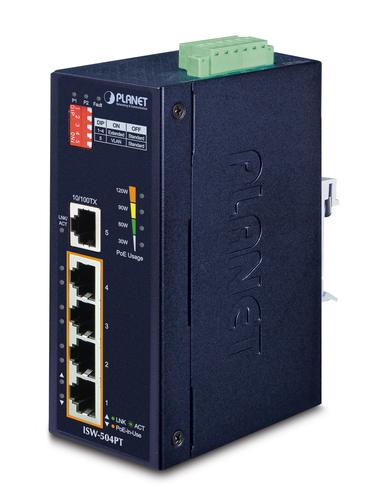

Planet ISW-504PT Unmanaged network switch L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black network switch
Planet

166,09 EUR
(1kg = 197,26 EUR)
Shipping from 0,00 EUR*
Hardware/ Electronic
Planet
Shipping charges are minimized.
17 visitors
are looking at this item
Delivery to US in: 5-9 workdays (only 5 left in stock)
Sales Rank: #462 in Router/Switches
#11845 in Computer
Style: Router/Switches
Product No.: 2098626513
Compare with similar items
ITEMS
Planet ISW-504PT Unmanaged network switch L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black network switch
Unifi U6-PRO Wifi-6
STARLINK Mini WLAN Router weiß/grau
AmpliFi Alien WiFi Kit wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, Green
UniFi Switch 2.5G 8-Port PoE
  "Planet-Planet ISW-504PT Unmanaged network switch L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black network switch-Planet-Hardware/Electronic" "Ubiquiti-Unifi U6-PRO Wifi-6-Ubiquiti-Hardware/Electronic" "Starlink-STARLINK Mini WLAN Router weiß/grau-Starlink-Hardware/Electronic" "Ubiquiti Amplifi Alien Wifi6 Kit-AmpliFi Alien WiFi Kit wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, Green-Ubiquiti-Hardware/Electronic" "Ubiquiti-UniFi Switch 2.5G 8-Port PoE-Ubiquiti-Hardware/Electronic"

Item number20986265132100541336210127461521003688992101394046
On offer since15.09.201820.02.202522.10.202417.07.202130.04.2025
Price166,09 EUR159,69 EUR289,29 EUR347,59 EUR191,39 EUR
Weight842 g600 g2.76kg5.37kg0.82kg
ManufacturerPlanetUbiquitiStarlinkUbiquitiUbiquiti
CategoryHardware/ElectronicHardware/ElectronicHardware/ElectronicHardware/ElectronicHardware/Electronic
Other interesting products in Router/Switches
Avm - FRITZ!Box 4050 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, White
FRITZ!Box 4050 wireless router Gigabit Eth...
Avm

122,09 EUR
Acer - ACER Connect Enduro M3 with 20 GB International Data (FF.G2DTA.001)
ACER Connect Enduro M3 with 20 GB Internat...
Acer

203,39 EUR
Ubiquiti - UniFi AP U6+ WiFi6 802.11ax without PoE injector
UniFi AP U6+ WiFi6 802.11ax without PoE in...
Ubiquiti

98,69 EUR
Teltonika - RUT901 Industrial LTE WiFi Router
RUT901 Industrial LTE WiFi Router
Teltonika

131,79 EUR
Tp-link - TP-Link M7350 4G LTE WLAN Router
TP-Link M7350 4G LTE WLAN Router
Tp-link

56,29 EUR
Ubiquiti - Ubiquiti Networks ES-24-LITE Managed network switch Gigabit Ethernet (10/100/1000) 1U Schwarz Netzwerk-Switch
Ubiquiti Networks ES-24-LITE Managed netwo...
Ubiquiti

220,89 EUR
Draytek - DrayTek Vigor 2135ac home router retail
DrayTek Vigor 2135ac home router retail
Draytek

192,29 EUR
Content:
Description:PLANET ISW-504PT - Switch - 4 x 10/100 (PoE) +1 x 10/100 - DIN Rail Mountable, Wall Mountable - PoE - DC Group Hubs & Switches Manufacturer PLANET Technology Manufacturer Item No. ISW-504PT Model ISW-504PT EAN/UPC 7630003270686 Product Description: PLANET ISW-504PT - Switch - 5 ports - DIN rail mounted mountable, wall-mountable Device type Switch - 5 ports type DIN rail mountable, wall-mountable Subtype Fast Ethernet Ports 4 x 10/100 (PoE) + 1 x 10/100 Power Over Ethernet (PoE) PoE Performance Switching Fabric Bandwidth: 1 Gbps Throughput: 0.74 Mpps Mac address table size 2000 entries Features auto-negotiation, auto-uplink (Auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode product certifications IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x power supply DC 24/48 V dimensions (width x depth x height) 13.5 cm x 8.78 cm x 5.6 cm weight 842 g
Details: General device type switch - 5 ports type
The product Planet Technology Corp.'s PLANET 5-Port Industrial Ethernet Switch w/ 4 PoE (-40~75" has a width of 87.8 mm, a height of 56 mm and a depth of 135 mm, has a FCC, CE certification and is Black. The product has a weight of 842 g.
Manufacturer No.: ISW-504PT
Product Safety
Technical specificationsLanguage
Logistics data
Harmonized System (HS) code85176990
Design
Wall mountableYes
StackableYes
Rack mountingNo
Product colourBlack
LED indicatorsYes
International Protection (IP) codeIP30
Housing materialMetal
DIN rail mountingYes
CertificationFCC, CE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port15.4 W
Power over Ethernet (PoE) ports quantity4
Power over Ethernet (PoE)Yes
Management features
Switch typeUnmanaged
Switch layerL2
Data transmission
Throughput0.74 Mpps
Switching capacity1 Gbit/s
Store-and-forwardYes
MAC address table1024 entries
Weight & dimensions
Width50 mm
Weight596 g
Height135 mm
Depth85.1 mm
Operational conditions
Storage temperature (T-T)-40 - 85 °C
Storage relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95 %
Power
Redundant power supply (RPS) supportYes
Power supply includedNo
Power protection featuresShort circuit
Network
Networking standardsIEEE 802.3af, IEEE 802.3u, IEEE 802.3x
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Full duplexYes
Flow control supportYes
Cable types supportedCat5, Cat5e, Cat6
Auto-negotiationYes
Auto MDI/MDI-XYes
10G supportNo
Ports & interfaces
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity5
