Gigabyte

MB GBT AMD AM5 B650 A ELITE AX ICE - AMD Socket AM5 (Ryzen Zen4) - ATX - USB 3.1 - USB 3.0 - PCI-Express (B650 A ELITE)
Gigabyte

263,69 EUR
plus shipping and customs
Hardware/ Electronic
Gigabyte
Shipping charges are minimized.
Gigabyte 1Gigabyte 2Gigabyte 35 visitors
are looking at this item
Delivery to US in: Currently sold out but back in stock soon
Sales Rank: 0
Style: Motherboards
Product No.: 2101042520
Description:Manufacturer-Nr.: B650 AORUS ELITE AX ICE ≤br>
Product Safety

Compare with similar items

ITEMS
ASUS PRIME N100I-D D4 NA (integrated CPU) mini ITX
Asrock X870E Taichi AMD X870E Socket AM5 Extended ATX
MSI Z790 GAMING PLUS WIFI Motherboard Intel Z790 LGA 1700 ATX
Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX
  "Asus-ASUS PRIME N100I-D D4 NA (integrated CPU) mini ITX-Asus-Hardware/Electronic" "As-rock-Asrock X870E Taichi AMD X870E Socket AM5 Extended ATX-Asrock-Hardware/Electronic" "Msi-MSI Z790 GAMING PLUS WIFI Motherboard Intel Z790 LGA 1700 ATX-Msi-Hardware/Electronic" "As-rock-Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX-Asrock-Hardware/Electronic"

Item number2100952517210126158221009937422100993723
On offer since29.07.202301.10.202426.09.202326.09.2023
Price127,99 EUR427,39 EUR210,49 EUR107,49 EUR
Weight0.78kg3.76kg2.02kg1.14kg
ManufacturerAsusAsrockMsiAsrock
CategoryHardware/ElectronicHardware/ElectronicHardware/ElectronicHardware/Electronic
Processor manufacturerIntel AMD Intel AMD
Processor socketNA (integrated CPU) Socket AM5 LGA 1700 Socket AM5
Compatible processor seriesIntel Processor N AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series 		Intel® Celeron®
Intel® Pentium® Gold 		AMD Ryzen 7000 Series
Supported memory typesDDR4-SDRAM DDR5-SDRAM DDR5-SDRAM DDR5-SDRAM
Number of memory slots1 4 4 4
Maximum internal memory16 GB256 GB192 GB192 GB
Supported memory clock speed (max)3200 MHz8200 MHz7200 MHz7200 MHz
Supported storage drive interfacesM.2
SATA III 		M.2
SATA III 		M.2
PCI Express 		M.2
PCI Express 4.0
PCI Express 5.0
SATA III
Supported storage drive typesHDD & SSD HDD & SSD HDD & SSD HDD & SSD
USB 2.0 connectors1 2 4 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1 2 4 3
Number of SATA III connectors1 6 6 4
Front panel audio connectorYes Yes Yes Yes
ITEMS
ASUS PRIME N100I-D D4 NA (integrated CPU) mini ITX
Asrock X870E Taichi AMD X870E Socket AM5 Extended ATX
MSI Z790 GAMING PLUS WIFI Motherboard Intel Z790 LGA 1700 ATX
Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX
USB 2.0 ports quantity2 2 4 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2 3 2 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2 5 1 1
Ethernet LAN (RJ-45) ports1 1 1 1
HDMI ports quantity1 1 1 1
Wi-FiNo Yes Yes No
Ethernet LANYes Yes Yes Yes
Ethernet interface typeGigabit Ethernet 2.5 Gigabit Ethernet
5 Gigabit Ethernet
Fast Ethernet
Gigabit Ethernet 		2.5 Gigabit Ethernet 2.5 Gigabit Ethernet
Component forPC PC PC PC
Motherboard form factormini ITX Extended ATX ATX micro ATX
Motherboard chipset familyIntel AMD Intel AMD
Audio output channels7.1 channels5.1 channels7.1 channels7.1 channels
Windows operating systems supportedWindows 10 x64
Windows 11 		Windows 10 x64
Windows 11 x64 		Windows 10 x64
Windows 11 x64 		Windows 10 x64
Windows 11 x64
Width170 mm305 mm243.8 mm244 mm
Depth170 mm267 mm304.8 mm244 mm

Other interesting products in Motherboards
Asus - ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
ASUS ROG STRIX X870E-E GAMING WIFI AMD X87...
Asus

455,09 EUR
As-rock - ASRock Z790I Lightning WiFi 1700 mATX HDMI/ DP DDR5 retail
ASRock Z790I Lightning WiFi 1700 mATX HDMI...
As-rock

227,89 EUR
As-rock - B850I Lightning WiFi AM5 mITX HDMI/USB-C DDR5
B850I Lightning WiFi AM5 mITX HDMI/ USB-C ...
As-rock

182,59 EUR
Msi - Mag B850m Mortar Wifi, Mainboard
Mag B850m Mortar Wifi, Mainboard
Msi

211,59 EUR
Asrock - Ec266d2i-2t/aqc, Intel, Lga 1700, Intel® Pentium® Gold, Intel® Xeon®, Intel Xeon
Ec266d2i-2t/ aqc, Intel, Lga 1700, Intel® ...
Asrock

389,69 EUR
Gigabyte - GIGABYTE B650E AORUS STEALTH ICE Motherboard - Unterstützt AMD Ryzen 9000 CPUs, 12+2+2 Phasen VRM, bis zu 8000MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
GIGABYTE B650E AORUS STEALTH ICE Motherboa...
Gigabyte

264,89 EUR
Asus - ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX
ASUS ROG CROSSHAIR X870E HERO AMD X870E So...
Asus

588,79 EUR

Technical specifications

Language

Weight & dimensions

Height35 mm
Depth244 mm
Width305 mm

Memory

Maximum internal memory per slot64 GB
Unbuffered memoryYes
Supported memory clock speed (max)8000 MHz
Supported memory clock speeds8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
ECC сompatibilityNon-ECC
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory256 GB
Number of memory slots4
Supported memory typesDDR5-SDRAM

Processor

Supported processor socketsSocket AM5
Maximum number of SMP processors1
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socketSocket AM5
Processor manufacturerAMD

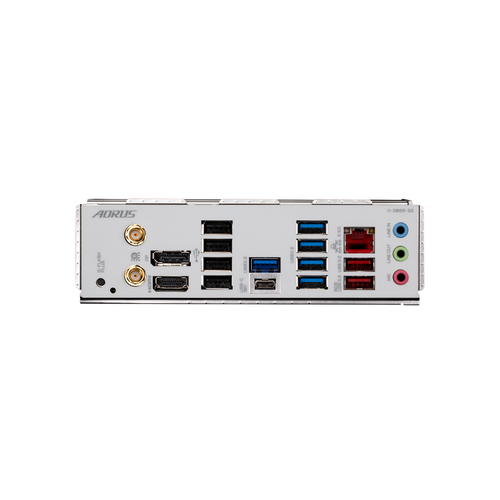

Rear panel I/O ports

WiFi-AP antenna jack2
Microphone inYes
Line-inYes
Headphone outputs1
DisplayPort version1.4
DisplayPorts quantity1
HDMI version2.1
DVI-D ports quantity0
HDMI ports quantity1
VGA (D-Sub) ports quantity0
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 2.0 ports quantity4

Internal I/O

Number of RGB LED pin headers4
RGB LED pin headerYes
Number of water pump connectors2
12V power connectorYes
TPM connectorYes
Number of EPS power connectors (8-pin)1
EPS power connector (8-pin)Yes
Peripheral (Molex) power connectors (4-pin)1
Number of chassis fan connectors4
Number of CPU fan connectors2
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Front panel connectorYes
Front panel audio connectorYes
USB 3.2 Gen 2x2 connectors1
Number of SATA III connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors2

Network

Bluetooth version5.3
BluetoothYes
WLAN controller modelRealtek RTL8852CE
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standardWi-Fi 6E (802.11ax)
LAN controllerRealtek RTL8125
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiYes

Expansion slots

3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size25110
Number of M.2 (M) slots3
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 3.x) slots2

Packaging content

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Antenna includedYes
Batteries includedYes

BIOS

System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Clear CMOS jumperYes
ACPI version5.0
BIOS memory size256 Mbit
BIOS typeUEFI AMI

Graphics

DirectX version12.0
HDCPYes
Maximum resolution4096 x 2160 pixels
Parallel processing technology supportNot supported

Technical details

Warranty period3 year(s)

Features

Windows operating systems supportedWindows 10 x64, Windows 11 x64
Power source typeATX
Cooling typePassive
PC health monitoringFan, Temperature, Voltage, Water cooling
Product colourWhite
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard chipsetAMD B650
Motherboard chipset familyAMD
Motherboard form factorATX
Component forPC

Storage controllers

RAID levels0, 1, 10
RAID supportYes
Number of storage drives supported7
Number of HDDs supported4
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III

Logistics data

Products per shipping (inner) case1 pc(s)
Country of originChina

Battery

Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Number of battery cells1
Lithium weight per battery0.0700 g
Battery weight3 g

Packaging data

Package weight2.33 kg
Package height80 mm
Package depth270 mm
Package width335 mm
