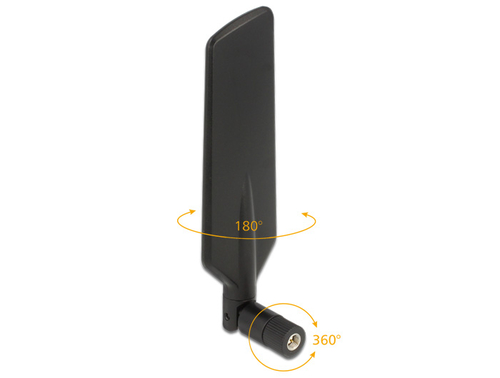

DeLOCK 12408 Omni-directional antenna SMA 4dBi network antenna
Delock

29,29 EUR  17,59 EUR
+3,00 EUR Shipping
free from 30,00 EUR*
Hardware/ Electronic
Delock
Shipping charges are minimized.
Delock 1Delock 2Delock 3Delock 4Delock 525 visitors
are looking at this item
Delivery to US in: 4-8 workdays (only 1 left in stock)
Sales Rank: #399 in WLan
#58870 in Computer
Style: WLan
Product No.: 2098120578
Description:Group Network Accessories Manufacturer DeLOCK Manufacturer Art. No. 12408 Model 12408 EAN/UPC Main Features Product Line DeLOCK Manufacturer DeLOCK Packaged Quantity 1 Accessories Category Antennas
Black, WLAN, LTE
-Mobile
-Inner
-4 dB
-Stabantenne
Manufacturer-No.: 12408
The product “LTE antenna dual band WLAN ac/a/b/g/n SMA plug 1 - 4 dBi omnidirectional rotatable...” by Delock from the category WLAN In operation, the temperature range is -10 - 55 °C. The item has the following dimensions: HEIGHT x WIDTH x 156.2 mm.
Manufacturer No.: 12408
Product Safety

Compare with similar items

ITEMS
DeLOCK 12408 Omni-directional antenna SMA 4dBi network antenna
WiFi access point GWN7660E
U7-Pro XGS WIFI 7, Access Point
TP-LINK Omada EAP725-Wall V1 - Accesspoint - 1GbE, 2.5GbE, Wi-Fi 7 (EAP725-WALL)
U7-Pro XG WIFI 7, Access Point
  "Delock-DeLOCK 12408 Omni-directional antenna SMA 4dBi network antenna-Delock-Hardware/Electronic" "Grandstream-WiFi access point GWN7660E-Grandstream-Accessories" "Ubiquiti-U7-Pro XGS WIFI 7, Access Point-Ubiquiti-Hardware/Electronic" "Tp-link-TP-LINK Omada EAP725-Wall V1 - Accesspoint - 1GbE, 2.5GbE, Wi-Fi 7 (EAP725-WALL)-Tp-link-Hardware/Electronic" "Ubiquiti-U7-Pro XG WIFI 7, Access Point-Ubiquiti-Hardware/Electronic"

Item number20981205782101230952210141695021013530292101390419
On offer since01.02.201814.08.202423.05.202522.02.202524.04.2025
Price17,59 EUR72,39 EUR270,19 EUR129,89 EUR183,39 EUR
Weight0.02kg443 g800 g0.53kg750 g
ManufacturerDelockGrandstreamUbiquitiTp-linkUbiquiti
CategoryHardware/ElectronicAccessoriesHardware/ElectronicHardware/ElectronicHardware/Electronic
Height13.5 mm40.8 mm215 mm143 mm206 mm
Depth156.2 mm180.4 mm32.5 mm40 mm32.5 mm
Width39.8 mm180.4 mm215 mm86 mm206 mm
Operating temperature (T-T)-10 - 55 °C0 - 45 °C-30 - 40 °C0 - 40 °C-30 - 40 °C
Antenna typeOmni-directional antenna Internal Internal Internal Internal
Antenna gain level (max)4 dBi4 dBi6 dBi5 dBi6 dBi

Other interesting products in WLan
Huawei - E3372 USB Surf Stick 150.0Mbit LTE White
E3372 USB Surf Stick 150.0Mbit LTE White
Huawei

41,89 EUR
Tp-link - Wireless AP WIFI7 &bull BE9300 &bull Tri-Band &bull Outdoor &bull 2.5 GbE &bull EAP772-Outdoor &bull Omada
Wireless AP WIFI7 &bull BE9300 &bull Tri-B...
Tp-link

222,49 EUR
Delock - DeLOCK WLAN antenna SMA w/ flexible joint 2dBi network antenna
DeLOCK WLAN antenna SMA w/ flexible joint ...
Delock

9,89 EUR
Poynting Antennas - Poynting · Antennas · 5G/ LTE · Car/Marine · A-MIMO-0003-V2-17-B · black · SMA (M) & RPSMA adapter · NEW
Poynting · Antennas · 5G/ LTE · Car/ Marin...
Poynting Antennas

271,49 EUR
Tp-link - TP-LINK EAP615-WALL wireless access point 1201 Mbit/s White
TP-LINK EAP615-WALL wireless access point ...
Tp-link

75,29 EUR
Ubiquiti - Ubiquiti Networks NSM2 150Mbit/s Energie Über Ethernet (PoE) Unterstützung Weiß WLAN Access Point
Ubiquiti Networks NSM2 150Mbit/ s Energie ...
Ubiquiti

80,39 EUR
Tp-link - TP-LINK BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Ac - Wi-Fi 7 - 1xGb RJ45 Port - 574Mbps 2880Mbps - 4K (EAP773)
TP-LINK BE9300 Ceiling Mount Tri-Band Wi-F...
Tp-link

173,19 EUR

Technical specifications

Language

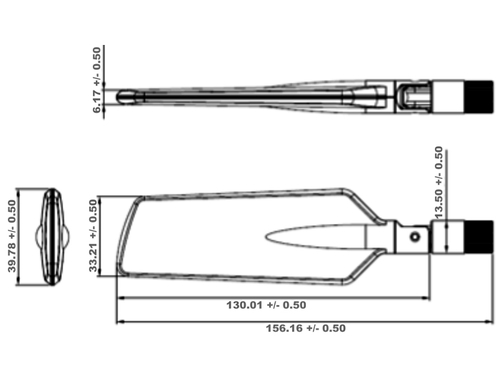

Weight & dimensions

Depth156.2 mm
Height13.5 mm
Width39.8 mm

Operational conditions

Operating temperature (T-T)-10 - 55 °C

Features

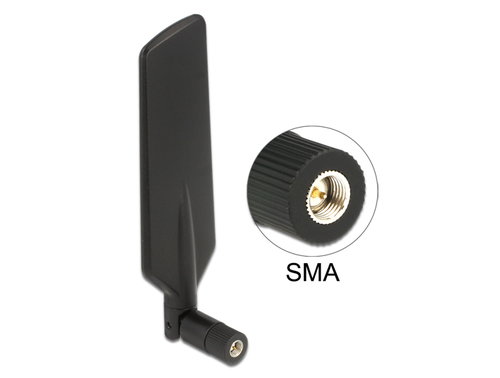

Antenna connector typeSMA
Antenna typeOmni-directional antenna
Housing materialAcrylonitrile butadiene styrene (ABS)
Voltage Standing Wave Ratio (VSWR)2.5:1 - 5.0:1

Packaging content

Quantity per pack1 pc(s)

Performance

Antenna gain level (max)4 dBi
Frequency band0.698 - 0.791 / 0.824 - 0.96 / 1.71 - 2.17 / 2.4 - 2.5 / 5.15 - 5.875 GHz
Impedance50 Ω

Packaging data

Package typePolybag
